PH129 – F4U CORSAIR SIZE 60CC GP/EP SCALE 1:5 ½ ARF

F4U CORSAIR
Availability: In stock
$799.00

Introducing

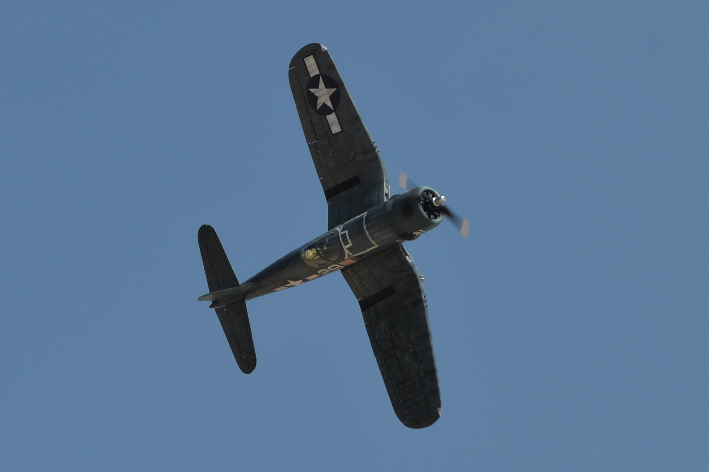

Regarded by many as the most formidable of all WWII American fighters, the F4U Corsair was a versatile, carrier-capable aircraft that provided excellent air and ground support. The Phoenix Corsair F4U 60cc ARF is built with the scale RC pilot in mind who wants a giant-scale model that’s as versatile as it is realistic. One of the greatest convenience features is the two-pieces fuselage, which features plug-in outer panels- Making assembly and transport super convenient. The airfoiled horizontal tail sections are removable as well. It’s also come with a full set rotary 90 degree air retract. Corsair is a registered trademark of Northrop Grumman Systems Corporation and is used under license to Phoenix Model .

Technical data

- Wingspan: 2170mm (85.4in)
- Length: 1658mm (65.2 in)
- Flying weight: 10200-12000 gr
- Wing area: 89 dm2
- Wing loading: 145g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®
- Retract gear type: Rotary 90 degree Air-retract With CNC Suspension Metal Struts (included)
- Spinner size: scale type (not included)
- Radio: 6 channel minimum (not included)
- Servo: 9 standard hi-torque servo: 2 aileron; 2 flap; 2 elevator; 1 rudder;1 retract valve; 1 throttle (not included)
- Recommended receiver battery: 6.0V 2400/2600mAh NiMH (2) (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 50- 60 CC gas engine (two stroke) (not included)
- Motor: brushless outrunner 6500 W, 230 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: Rimfire 50cc (not included)
- Propeller: 22x8 to 26x10 (not included)
- Lipo cell: 33.3-55.5V / 9-15S LiPo (not included)
- Esc: 120 Amp (not included)

Feature

- Official licensed product
- Superb flying characteristics, plus an accurate scale outline
- Functional three-panel flaps deploy using internal linkages
- Two-pieces fuselage - Making assembly and transport super convenient
- Designed for compatibility with both GP and EP flight
- Covered in genuine ORACOVER®
- Separate fuselage and wing structure allows compact transportation
- Extremely lightweight laser-cut all-wood construction
- Rotary 90 degree Air-retract With CNC Suspension Metal Struts included
- Full-depth cockpit and instrument panel and pilot included
- Aluminum hub wheel included
- Removable canopy for easy change lipo battery and set up radio
- High-quality hardware package included

Colour chart

- Corsair blue (# 21019)
- Ferrari Red ( #21023)
- White ( #21010)

Packing

- Packing in a carton: (62 x 25 x 14) inches - (L x W x H)
- Weight: ... lbs
